Product name：ESD M30AN
Product model：Antistatic Masterbatch
Product brand：INCHR
Product description：
Solutions for electro-static discharge
Permanent Antistatic Masterbatch For Polymers

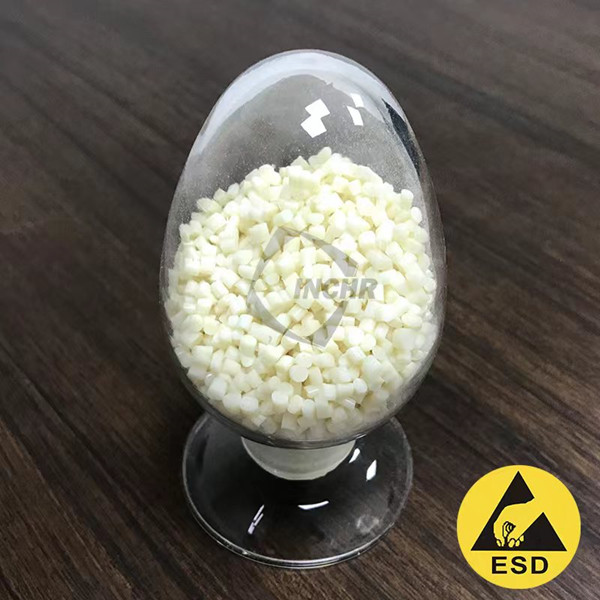

Introduction of antistatic masterbatch
Polymers are insulators under normal circumstances, and their surface resistance is usually above 10^12 Ω. Anti-static packaging materials require a surface resistance of 10^7-10^11Ω. This product is an additive high-efficiency antistatic masterbatch for PS ,PP polymer, It consists of a carrier, antistatic agent, and other additives. Adding antistatic masterber can avoid static electricity due to the insulating properties of the polymer itself, making it adaptable to the packaging requirements of semi-conductor ,chip or IC products and the production of special anti-static products. It has a good effect on dust-proofing the surface of the products. This product has good antistatic effect, long-lasting effect, good dispersibility, small addition amount, does not contain any toxic substances, and complies with RoHS standards.
Common antistatic masterbatch includes ABS antistatic masterbatch, PS antistatic masterbatch, PP antistatic masterbatch, PE antistatic masterbatch, PA antistatic masterbatch, etc. Among them, PS masterbatch is the most widely used one in ESD PS film and ESD PS sheet.
The antistatic masterbatch is mainly used in the fields of wire, film and sheet, etc. It can make the surface resistance value reach 10^8-10^Ω and has a good anti-static effect. During the product molding process, the antistatic masterbatch is dry blended to the pure resin. Mix well and process according to normal production process. Recommended dosage: 30~80%.
M30AN antistatic masterbatch is designed for PS film or PS sheet.Following selection chart provides main performance:
PERMANENCEValue
Standard
Specific Gravity
1.19
D 792
Shore Hardness HD
59
Internal Method
Molding Shrinkage
1/8 in (3.2 mm)
1.20 - 1.60 %
D 955
MECHANICALTensile Strength
11 MPa
D 638
Tensile Elongation
17.0 %
D 638
Tensile Modulus
1030 MPa
D 638
Flexural Strength
21 MPa
D 790

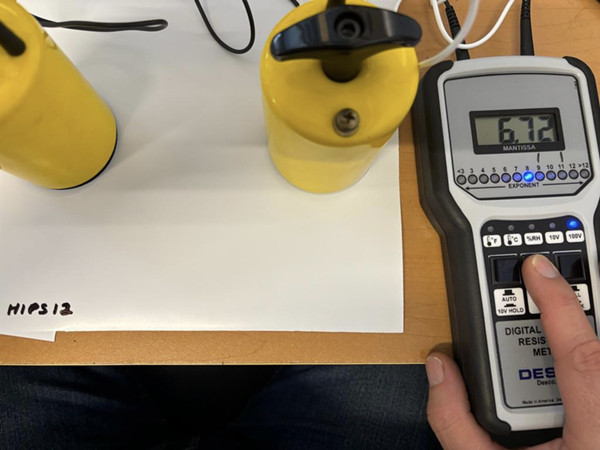

ELECTRICALSurface Resistivity
23°C, 50%R.H
1.0E+6 - 9.9E+7 ohm/sq
D 257
GENERAL PROCESSING FOR INJECTION MOLDINGInjection Pressure
50 - 90 MPa
Melt Temperature
180- 190 °C
Mold Temperature
85 °C
Drying
2 hrs @ 80 °C
Moisture Content
0.20 %
PROCESSING NOTESData herein is typical and not to be construed as specifications.
Antistatic masterbatch main characteristics:
* Long distance antistatic performance
* Adjustable dosage for antistatic resistance value.
* Suitable for colorable and colored formulations.
* Can be dry blended or compounded
* Excellent dispersibility.
Packaging and storage:
* All antistatic masterbatch grades are delivered dried in sealed foil film packaging (25 kg bags) ready to be processed.
* All grades can be stored in its original packaging for at least 12 months without losing its properties.
INCHR also provides conductive PP compound, conductive PS compound, conductive PE compound, and conductive PET compound for ESD protection. For more information, please contact our technician via mailbox mike@inchr-esd.com or visit www.inchr-esd.com.
