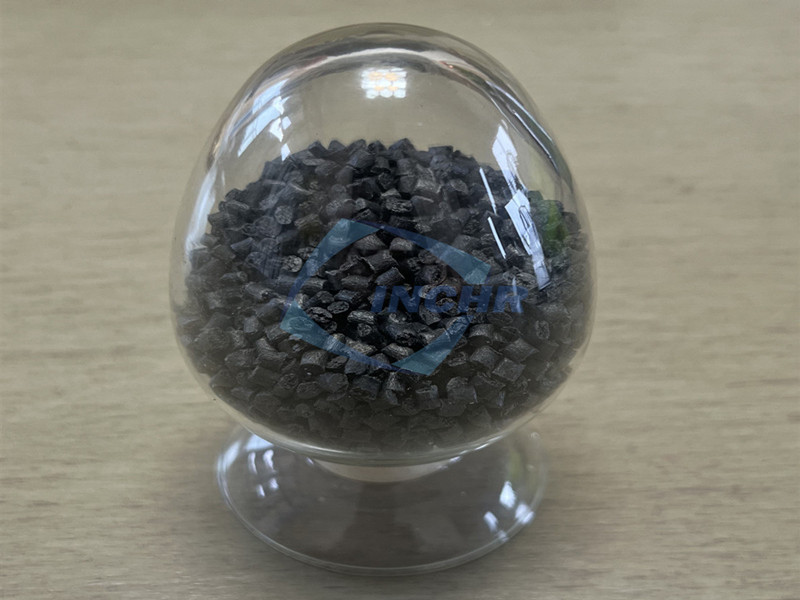

Product name：20% Carbon Fiber Nylon 66
Product model：Carbon Fiber Reinforced Nylon Compound
Product brand：INCHR
Processing customized：20% Carbon Fiber Reinforced
Product specification：MC205
Product description：Nylon 66 MC205 Compound
20% Carbon Fiber Reinforced Nylon 66
Electrically Conductive Nylon 66
Properties &Data Of Injection Molded Specimens
Physical property
Standard
Value
Unit
Density
ASTM D792
1.25
g/cm3
Shrinkage
ASTM D955
0.3~0.5
%
Water Absorption 24hr
ASTM D570
0.90
%
Melt Volume Rate
ASTM D-1238
8.5
g/10min
Mechanical behavior
Standard
Value
Unit
Tensile Strength
ASTM D638
193
MPa
Elongation Yield
ASTM D638
2~4
%
Flexural Strength
ASTM D790
296
MPa
Flexural Modulus
ASTM D790
16~547
MPa
Izod Notch Impact 3.00mm
ASTM D256
64
J/m
Izod Un-notch Impact 3.00mm
ASTM D256
640
J/m
Thermal
Standard
Value
Unit
HDT 1.80MPa
ASTM D648
240
°C
Melting Temperature
260~301
°C
Electrical properties
Standard
Value
Unit
Surface Resistivity
10E3~10E6
Ω
Flammability
Standard
Value
Unit
Flame Rating 1~1.5mm
UL94
HB
Disclaimer:Data herein is typical and not to be construed as specifications.
Carbon fiber reinforced Nylon 66 properties
PA66 MC205 is one of carbon fiber reinforced nylon series which is 20% carbon fiber filled.
INCHR@carbon fiber reinforced nylon compound has excellent wear resistance, self-lubricating properties and high mechanical strength. However, it is more water absorbent and therefore has poor dimensional stability.
INCHR@carbon fiber reinforced nylon compound can maintain strong strength and stiffness at higher temperatures. This carbon fiber reinforced polymer is still hygroscopic after molding, the degree of which mainly depends on the composition of the material, wall thickness and environmental conditions.
Carbon fiber reinforced Nylon 66 features
Carbon fiber reinforced nylon has the characteristics of high strength, high rigidity and high toughness. It is a new material with excellent mechanical properties.
Carbon fiber reinforced nylon has the characteristics of light weight, high tensile strength, wear resistance, corrosion resistance, electrical conductivity, thermal conductivity, etc. Compared with glass fiber, the modulus is 3 to 5 times higher, so it is a nylon with high rigidity and high strength. Excellent reinforcement for materials. Carbon fiber reinforced nylon can be divided into two categories: long (continuous) fiber reinforcement and short fiber reinforcement.
The friction coefficient and wear amount of carbon fiber reinforced nylon decrease as the load increases, the creep at high temperature is small, the thermal stability is significantly improved, the dimensional accuracy is good, the wear resistance and damping are excellent, and it has better overall performance.
Carbon fiber reinforced Nylon 66 applications

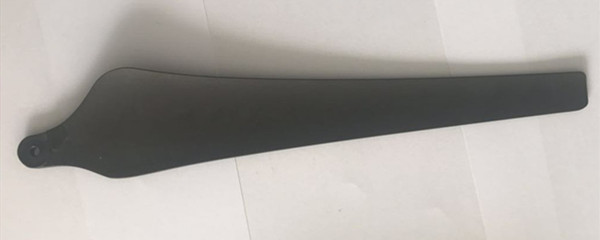

Carbon fiber reinforced compound nylon has excellent properties of replacing metal, is light, high-tough, and easy to process. Its application range covers a wide range of fields, such as components in the automotive industry, electronic appliances, automobiles, communications, medical equipment, mine safety, and used in explosion-proof products. Shells and structural parts, as well as semi-conductive shielding materials used in medium and high voltage cables.
