Product name： 20% Carbon Fiber PC
Product model： Carbon fiber reinforced Polycarbonate
Product brand：INCHR
Processing customized：20% Carbon Fiber Reinforced
Product specification：PC 205A
Product description：PC 205A

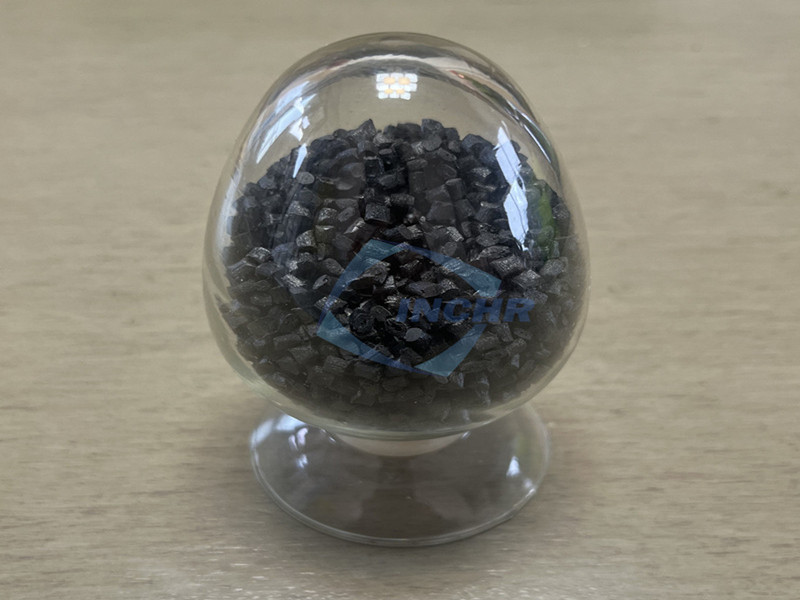

Polycarbonate CF20 Compound
20% carbon fiber reinforced Polycarbonate(PC)
Properties &Data Of Injection Molded Specimens
Physical property
Standard
Value
Unit
Density
ASTM D792
1.28
g/cm3
Shrinkage
ASTM D955
0.05~0.2
%
Water Absorption 24hr
ASTM D570
0.09
%
Specific Volume
0.781
cm3/g
Mechanical behavior
Standard
Value
Unit
Tensile Strength
ASTM D638
138
MPa
Elongation Yield
ASTM D638
2~3
%
Flexural Strength
ASTM D790
207
MPa
Flexural Modulus
ASTM D790
11032
MPa
Izod Notch Impact 3.20mm
ASTM D256
107
J/m
Izod Un-notch Impact 3.20mm
ASTM D256
640
J/m
Thermal
Standard
Value
Unit
HDT 1.80MPa
ASTM D648
143
°C
CLE
ASTM D696
2.16E-6
Electrical properties
Standard
Value
Unit
Surface Resistivity
1E3~1E5
Ω
Flammability
Standard
Value
Unit
Flame Rating 1~1.5mm
UL94
HB
Disclaimer: Data herein is typical and not to be construed as specifications.
Carbon fiber reinforced polycarbonate(PC) properties
PC 205A is carbon fiber reinforced polycarbonate compound which is a composite material composed of 20% carbon fiber and polycarbonate resin.The material has high strength, high elastic coefficient, high impact strength, good fatigue resistance, dimensional stability and small creep (little change even under high temperature conditions).
Carbon fiber reinforced polycarbonate(PC) compound has a wide operating temperature range, the temperature index after reinforcement can reach 120~140℃, and has good aging performance under long-term outdoor use
Solvent resistance shows that carbon fiber reinforced polycarbonate(PC) compound will not suffer from stress cracking due to solvents.
Carbon fiber reinforced polycarbonate(PC) application
Aerospace field:Carbon fiber reinforced PC compound has excellent properties such as light weight, high strength, and high stiffness, so it is widely used in the aerospace field. It can be used to manufacture aircraft fuselages, wings, vertical tails and other components, which can reduce the weight of the aircraft and improve its flight performance and carrying capacity.
Automotive field:Carbon fiber reinforced PC compound can be used to manufacture automobile parts such as bodies, hoods, seats, etc. Compared with traditional metal materials, carbon fiber has higher strength and lighter mass, which can reduce the weight of the car and improve the fuel economy and driving performance of the car.
Electronic appliances:Carbon fiber reinforced PC compound is mainly used in electronic and electrical casings, special-shaped materials, mobile phone pressure-holding fixtures, special parts, explosion-proof equipment and other fields.Sports equipment field:Carbon fiber reinforced PC compound can be used to manufacture various sports equipment, such as golf clubs, bicycle frames, skis, etc. Carbon fiber has excellent strength and stiffness, which can improve the stability, elasticity and service life of the equipment.

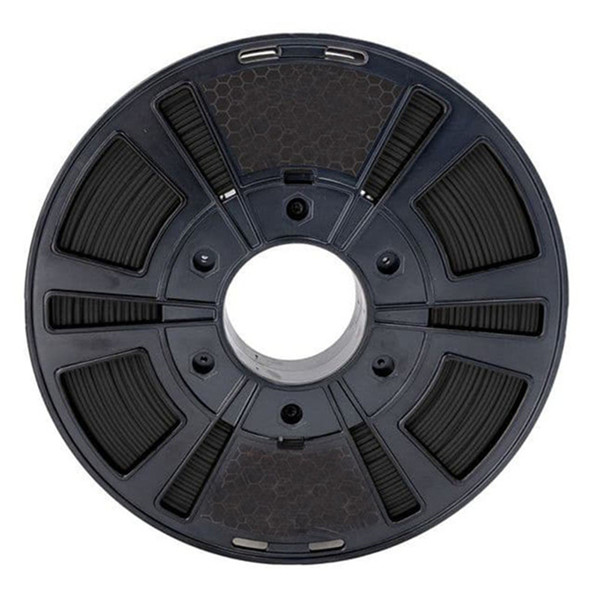

3D printing:The extrusion grade is a high-performance compound for 3D printing filament.
